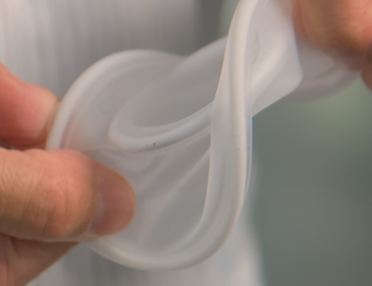

Liquid silicone surgical incision protector has excellent elasticity, softness and wear resistance, which can provide reliable protection for patients, reduce the risk of infection, and improve the success rate of surgery.
1. Made of high-quality materials, it has good breathability and waterproofness, effectively preventing bacteria from entering the incision.
2. The unique design ensures that the tissue around the incision is fully protected to avoid accidental damage.
The medical incision protector can cover the incision 360 degrees to provide comprehensive protection, effectively prevent bacteria and other contaminants from entering the incision, and reduce the risk of infection. However, ordinary incision expansion braces may only provide support and protection in some areas
The mold steel is stainless steel in higher corrosion resistance and biocompatibility, important for medical products. This is because in the mold production environment you may be exposed to body fluids, drugs and other corrosive substances.
To reduce the risk of corrosion and staining, ensure the reliability of the mold in long-term production, and prevent surface corrosive substances from contaminating the product during injection.
All mold steels contact with the product parts is ASSAB S136 high-purity steel in HRC52°.
In comparison, regular mold steels do not have the same corrosion resistance and biocompatibility and may not have the same mechanical properties as specialty stainless steels. Using ordinary mold steel may increase the risk of mold damage, corrosion and contamination.

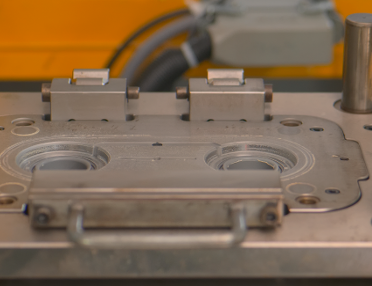

Due to the complexity of the product, the surgical incision protector mold is designed and produced in a vertical design with a multi-pallet structure.

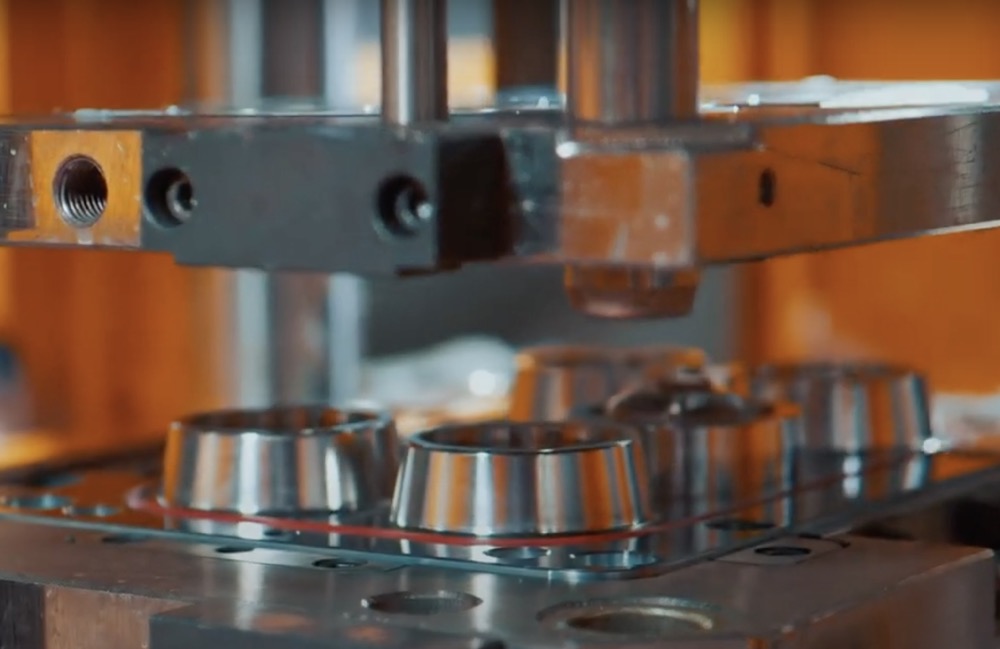

The mold opens and close from top side and bottom side;

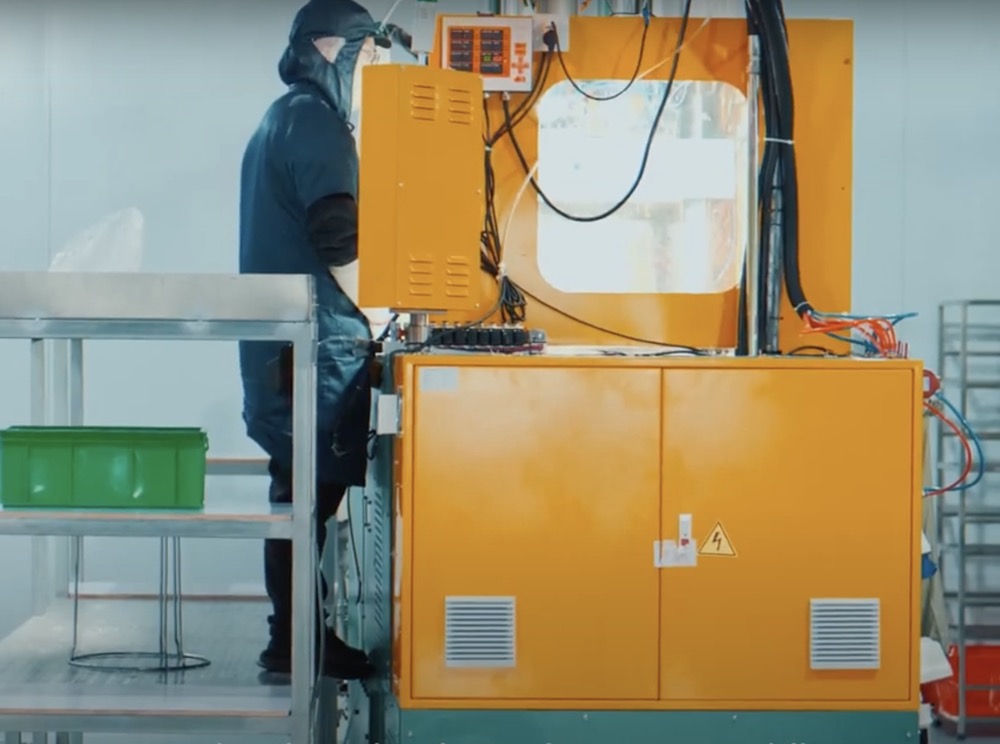

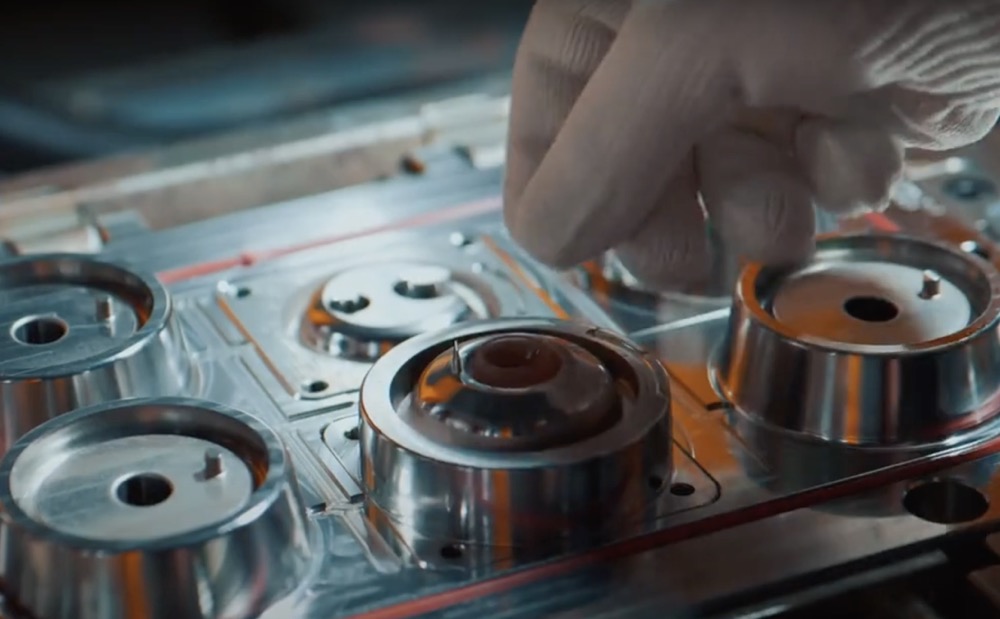

The LSR equipment automatically opens → the upper mold rises → the lower mold slides to left or right.When the mold is open, the lower mold stays at the end; manually open the middle plate of the lower mold plate → install PPSU accessories → close the middle plate → manually press the mold closing switch and the mold will automatically close →LSR raw material is injected into the high-temperature mold cavity of 150 degrees for vulcanization →After the vulcanization is completed, the mold automatically opens—→The lower mold plate slide to one end.

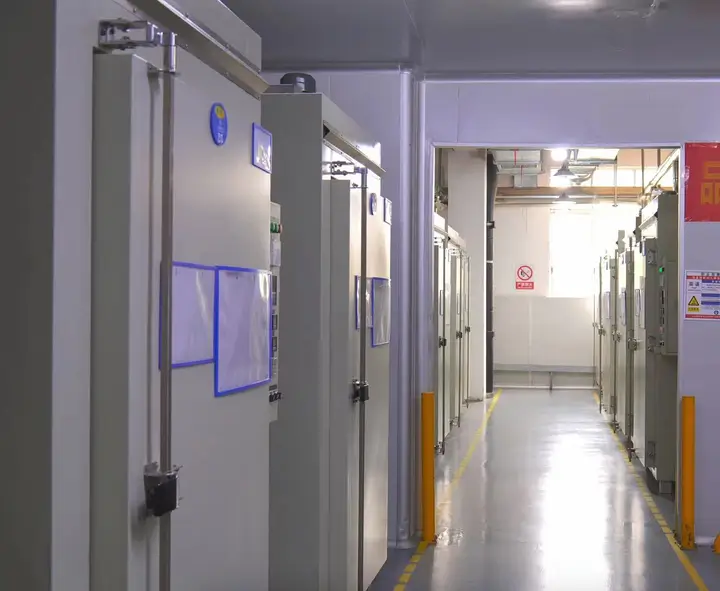

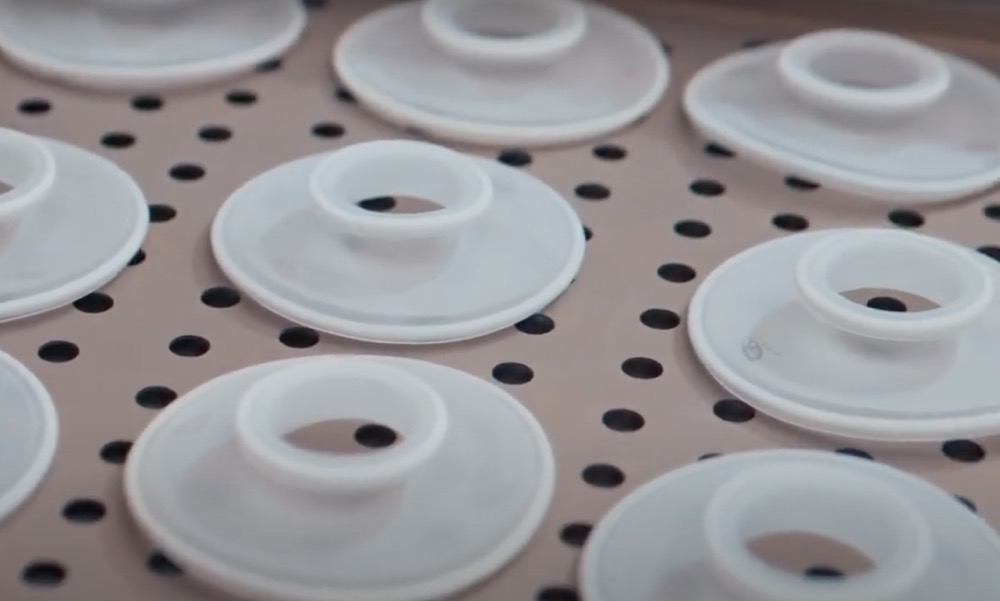

Finished parts will be transfer to do second vulcanization to clean VOC 100%.
High-temperature vulcanization not only solidifies the silicone material, but also improves the hygienic safety of the product. Secondary high-temperature vulcanization further enhances the physical properties and chemical stability of the protector, enabling it to effectively protect the incision during surgery.
