What elements does DFM analyze?

A DFM(Design For Manufacturability) generally analyze Including 8 factors:

A DFM(Design For Manufacturability) generally analyze Including:

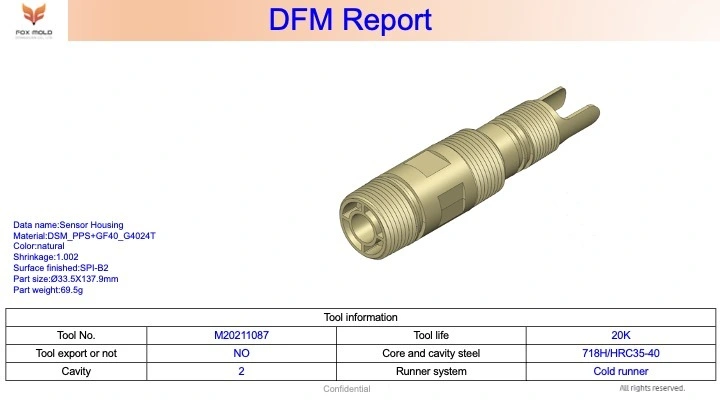

1. Shows part size, raw material and mold basic information.

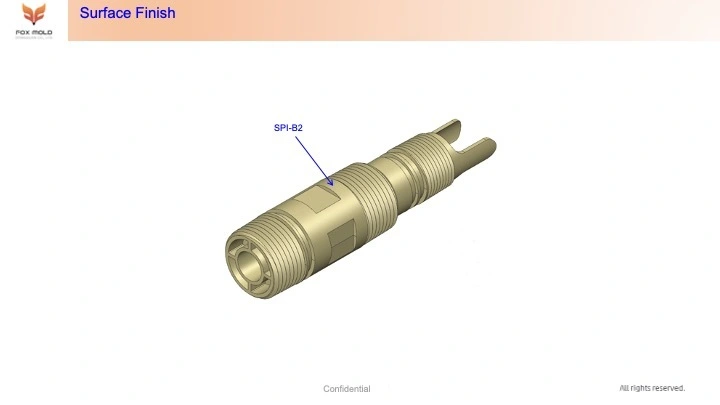

2. Surface treatment.

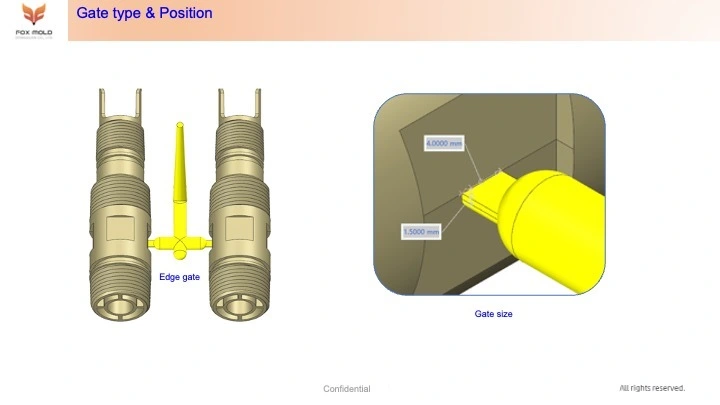

3. Gate type & Position.

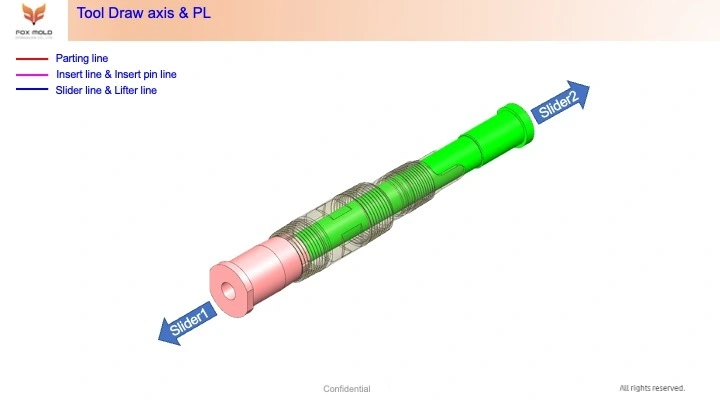

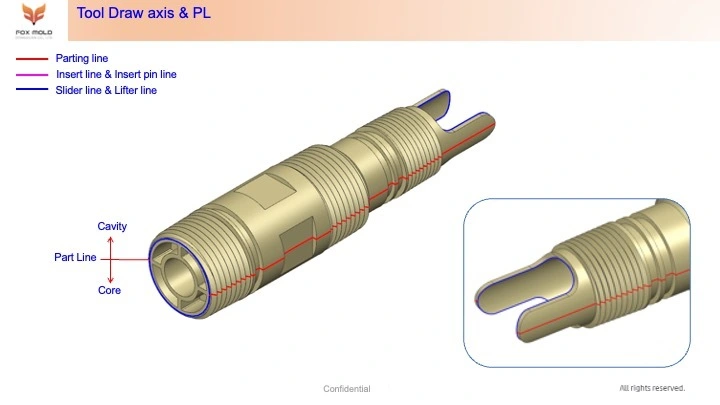

4. Tool draw axis and parting line.

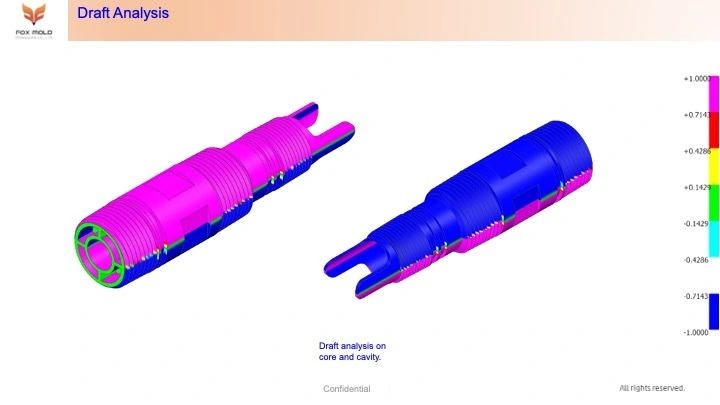

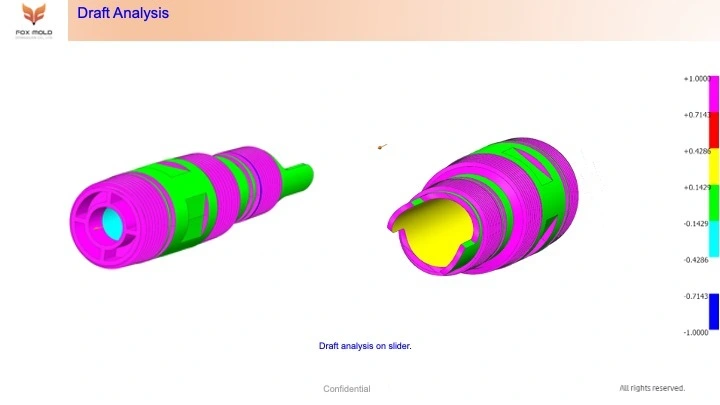

5. Draft analysis.

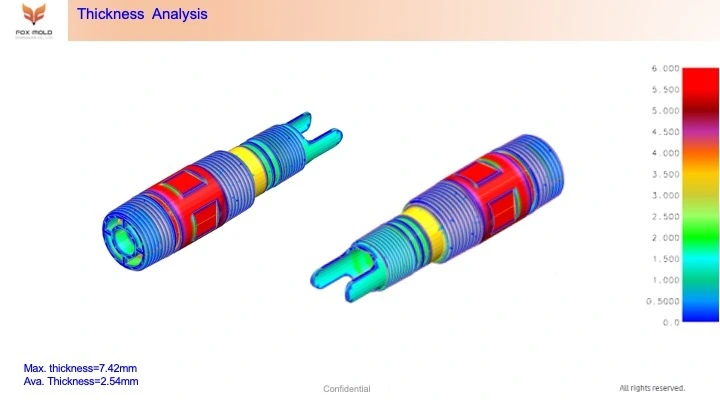

6. Thickness thickness and sink mark risk analysis.

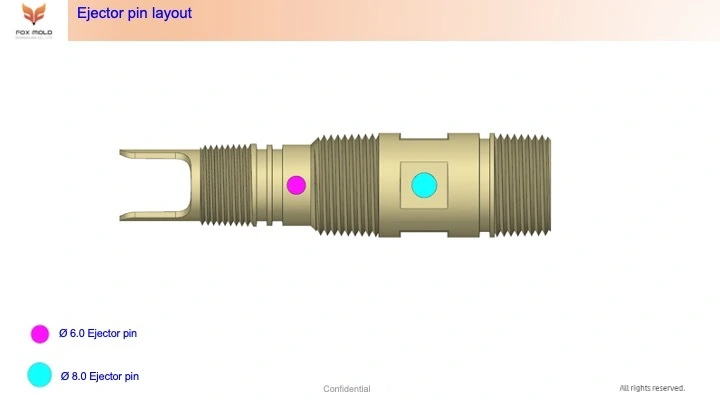

7. Ejector pin layout.

8. Engraving detail.

Issues and suggested solution.
